Strange parts department


This part is one of loose objects that rarely gets passed on from one owner to another. It is the gizmo that you use to hold the brake down so that winding the warp is easier. If you do not have this part any more (and believe me most weavers do not!), you can easily fashion a similar device that does the same job. The goal is to prop something between the brake pedal and the cross piece at the bottom of the loom.

One photo here shows the device in place. Remember that I have an air dobby so my cross piece is cast iron, not wood. The green hose is the air pressure hose to run the dobby system.

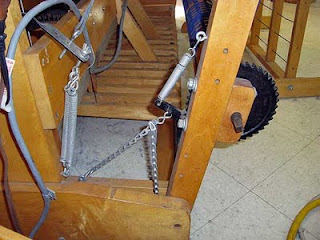

Included here is a photo detail of the back brake system on my loom. I have two back beams. The upper beam has a friction brake and the lower beam has a ratchet brake. The friction brake uses the springs and the ratchet brake uses the spring. I hope this helps those of you who are struggling to set up loom that have been disassembled. If you need more images, let me know!

I am back to work steadily in the studio. Making serious progress on the "Tree of Life" commission.

Happy weaving! Sarah
